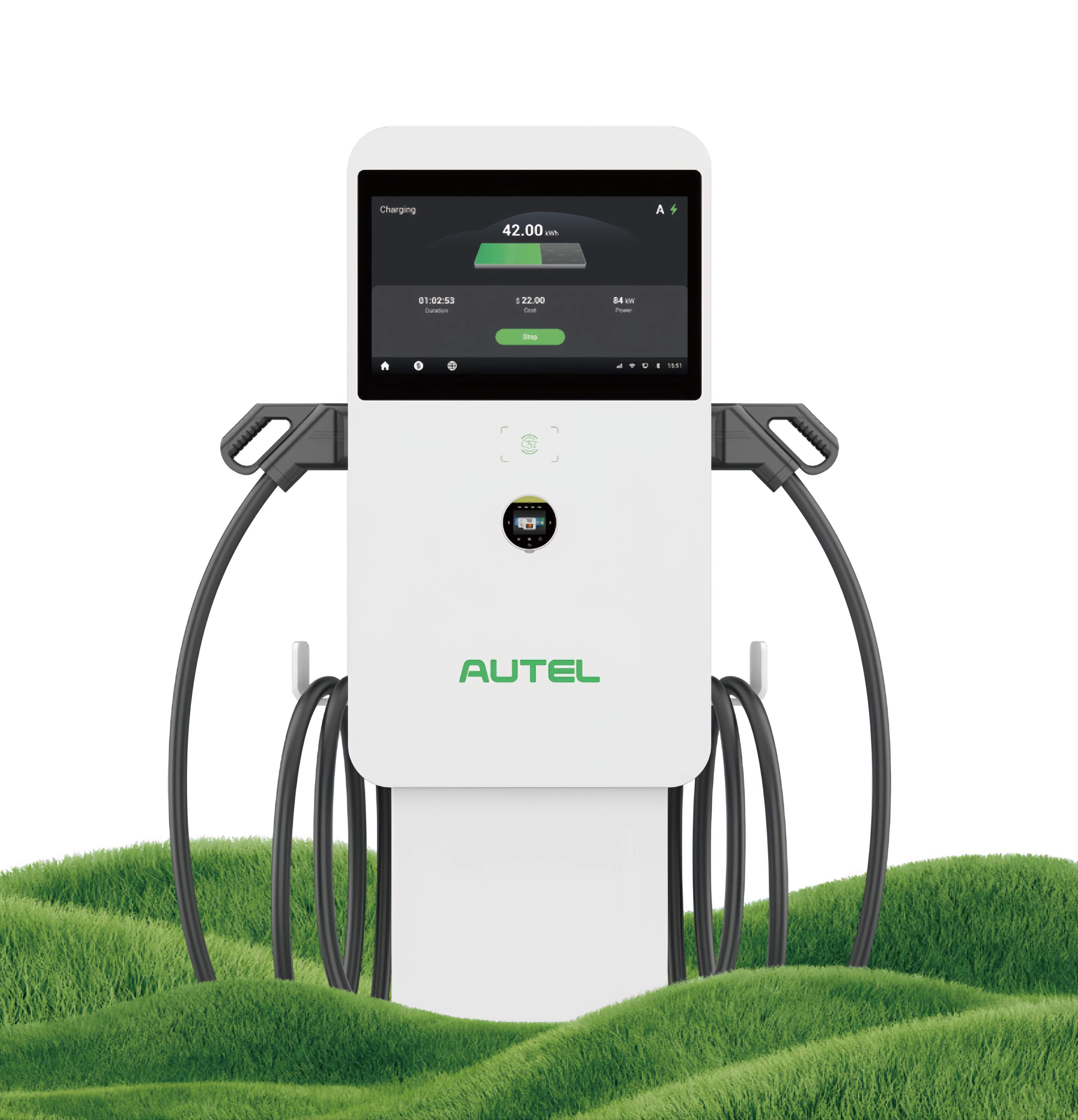

Autel MaxiCharger DC Compact 50kW DC Charger

Offices and Business Parks Suitable for small and large offices, business parks, and commercial complexes where vehicles require faster charging during the day.

Commercial Fleets A strong option for fleets that already use AC chargers but need a faster top-up solution when vehicles need to return to service quickly.

Public Charging Locations Ideal for airports, car parks, hotels, hospitality venues, supermarkets, campuses, and other public destinations where users may stay for around 30 minutes to 2 hours.

Workshops, Garages, and Dealerships The trolley version provides a mobile charging solution for workshops, garages, vehicle service centres, and dealerships that need flexible charging on-site.

Up to 50kW DC Fast Charging Delivers up to 50kW of DC charging power, making it suitable for rapid charging in commercial and public environments. Dual outlets allow two EVs to be charged at the same time, depending on site configuration and available power.

Dynamic Load Management The charger can work with a separate energy meter installed on the building’s distribution board. This allows the charging system to monitor real-time electrical usage and automatically adjust charging power to help prevent overload, reduce circuit breaker trips, and minimise the need for costly electrical upgrades.

Power Sharing Between Chargers Up to 40 additional Autel AC or DC chargers can be grouped with the DC Compact unit to share available power across the site. One charger can act as the lead unit and communicate with the others over a local area network, helping operators manage charging priority and energy usage more efficiently.

21.5-Inch LCD Touchscreen A large 21.5-inch colour touchscreen provides a clear and user-friendly interface. It can be used for starting and stopping charging sessions, viewing charging status, checking previous session details, and supporting configuration and maintenance procedures.

PV Hybrid Mode Supports multiple charging modes for sites using renewable electricity such as solar. The charger can be configured to operate when surplus renewable energy is available, or to receive power from both solar and the grid.

Multiple Connectivity Options Supports Ethernet, Wi-Fi, cellular network, RFID, and RS485, allowing the charger to connect with charge point management systems, other chargers, or site management platforms.

Flexible Access Control The charger can support different user access methods depending on your site requirements, including free access, QR code payment, and RFID access control.

Durable Outdoor-Rated Enclosure Built with a stainless steel enclosure and rated IP54 for protection against dust, water, and debris. With an IK10 impact rating, it is designed for reliable indoor and outdoor commercial use.

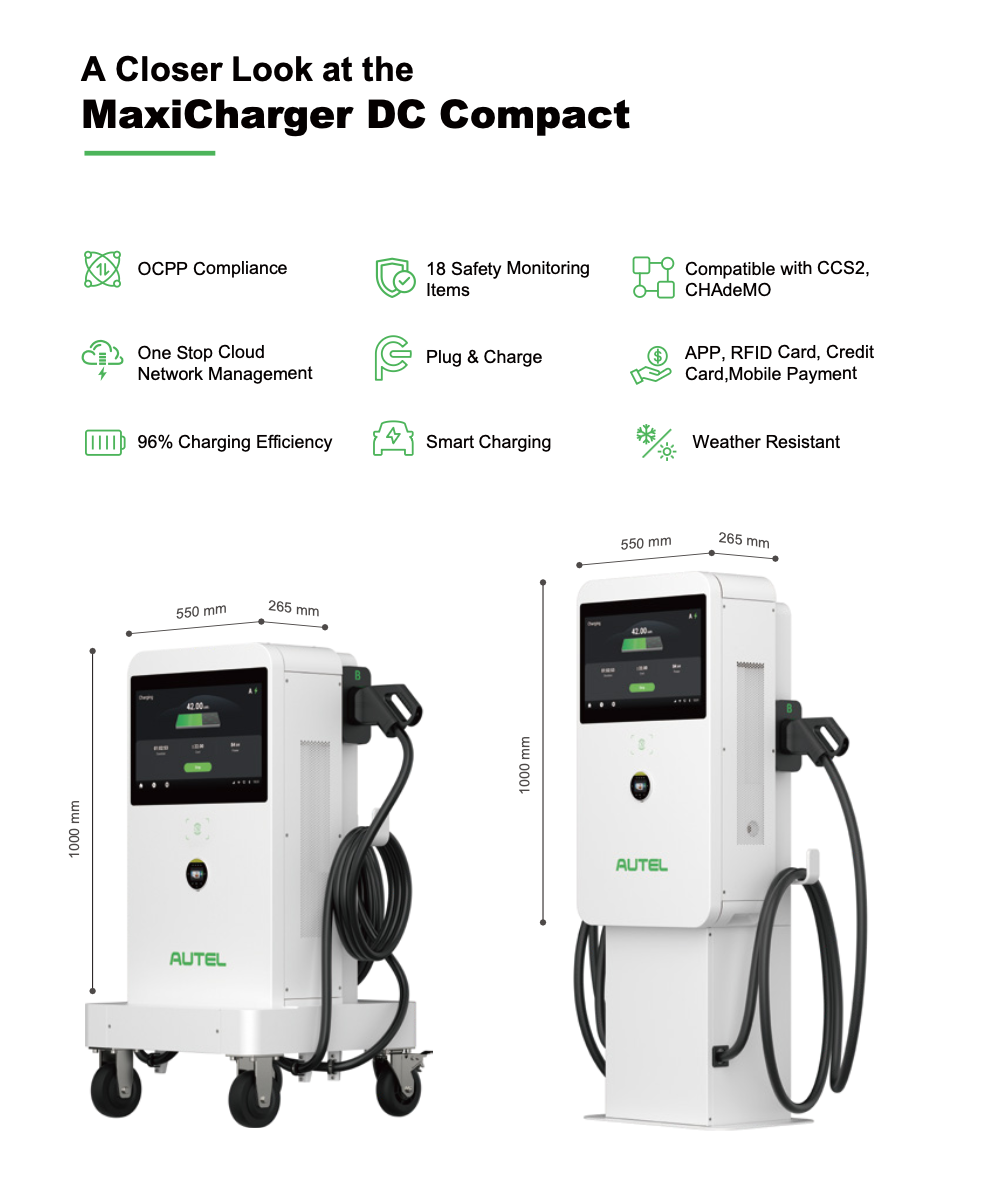

Multiple Mounting Options Available as a wall-mounted unit, pedestal-mounted unit, or trolley version for mobile charging use in workshops and garages.

Smart Charging Settings Operators can customise charging settings directly from the touchscreen, including charging limits, power guidelines, and smart energy management settings for more efficient operation.

Free Access Users can simply plug in and start charging. This option is suitable for secure private locations such as internal garages or staff-only areas.

QR Code Payment Drivers can scan a QR code on the charger’s screen and access a payment portal without needing to download an app or create an account.

RFID Access Charging can be restricted to approved users with RFID cards or tags. This is suitable for fleet, workplace, apartment, or private commercial use.

Charging Connector Tethered cables with CCS2 connector

DC Charging Power Up to 50kW

Display 21.5-inch LCD touchscreen, 1920 × 1080 resolution

Connectivity Wi-Fi, Ethernet, cellular network, RFID reader, RS485

Communication Protocol OCPP 1.6J

Protection Overcurrent, overtemperature, overvoltage, undervoltage, insulation monitoring, and ground fault protection

Surge Protection Integrated surge protection

Enclosure Stainless steel

Ingress Protection IP54

Impact Rating IK10

Dimensions 550mm W × 1000mm H × 265mm D

Mounting Options Wall-mounted, pedestal-mounted, or trolley-mounted
