The MaxiCharger DC Compact delivers high performance in a small footprint. Providing up to 40 kW of DC charging power and featuring an advertising display, it’s an adaptable solution ideal for electric vehicle fleets, auto dealerships, retail centers, and other locations. Designed and built by Autel.
Powerful Performance. Compact Design.
The DC Compact delivers 40 kW of power, enabling drivers to gain up to 80 miles of range in only 30 minutes. It can charge two vehicles at once, intelligently sharing power in real time.
40 kW
Power
30min
Charge 128 km
Installation Flexibility
Operators can opt for a pedestal mount for permanent installation or a wheel-mounted version for exceptional mobility. The wheeled option offers maximum portability across large spaces, accommodating a wide range of business requirements.
Boosted Business Advantage
Create loyal, long-term customers by delivering an exceptional EV charging experience. Showcase your brand directly on-screen or display paid advertisements to generate extra income. Maximize profits by blending ad revenue with energy charges, time-based fees, connection fees, and idle fees for a balanced, optimized business model.

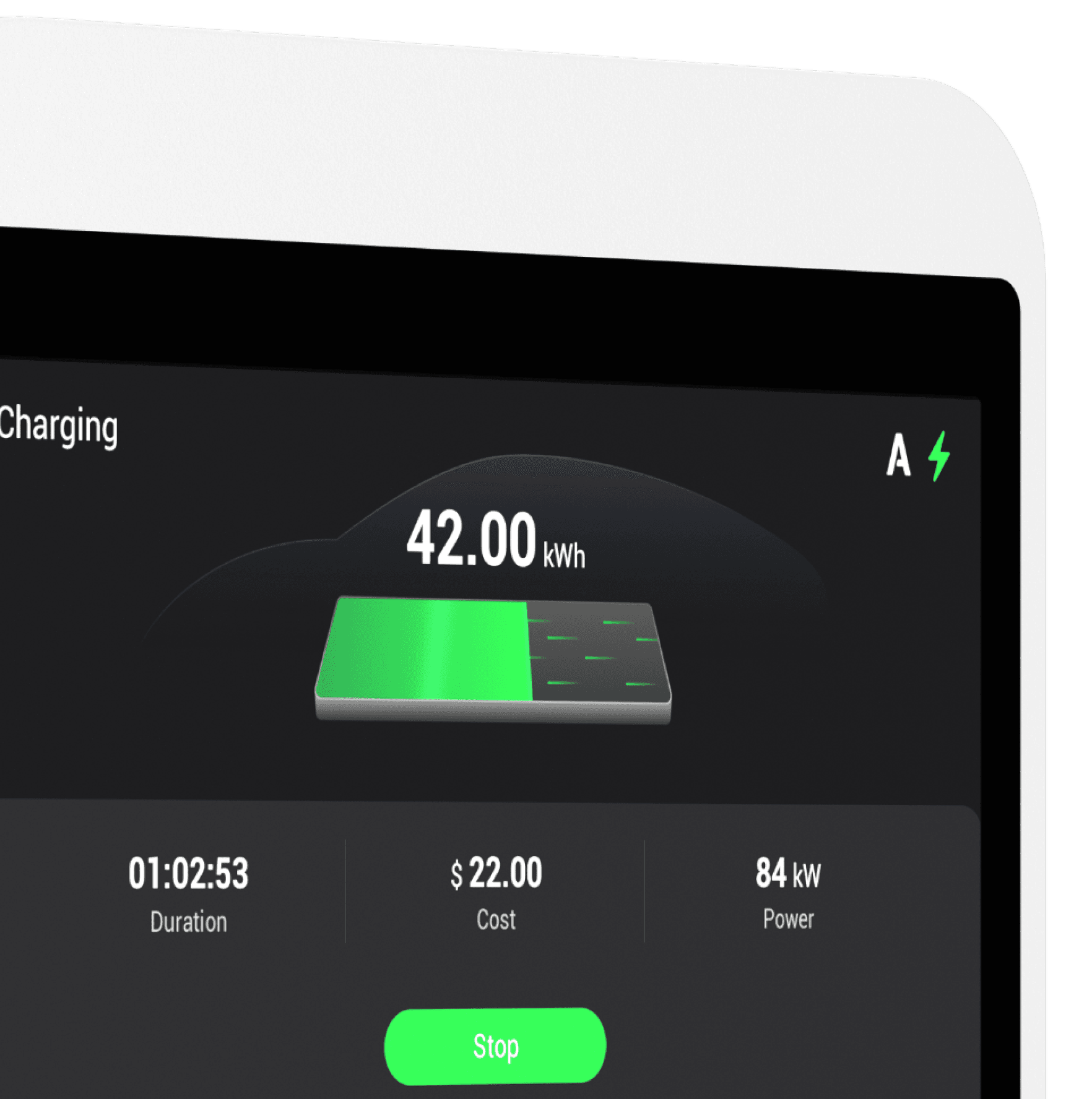

Promotions-Ready Screen
The DC Compact comes equipped with a 21.5-inch, crystal-clear IK10-rated touchscreen, delivering an exceptional charging experience for drivers. Users can monitor charging progress in real time and select their preferred language with ease. When not in use, the screen can showcase videos, images, and slideshows, creating an eye-catching visual display.
Real-Time Power Distribution
Autel's Dynamic Load Balancing (DLB) system allows chargers to intelligently distribute available electrical power across multiple charging vehicles in real time, adjusting to demand to maximize efficiency and safety. When two vehicles are connected to the same charger or network, the output is dynamically divided, often providing half the total capacity to each vehicle to prevent overloading the electrical system. If more than two vehicles are charging, the available power is further distributed among all active chargers, ensuring each receives a fair share while the total network limit is not exceeded. This approach safeguards the network from overloading and enables smooth, safe charging for multiple electric vehicles simultaneously.

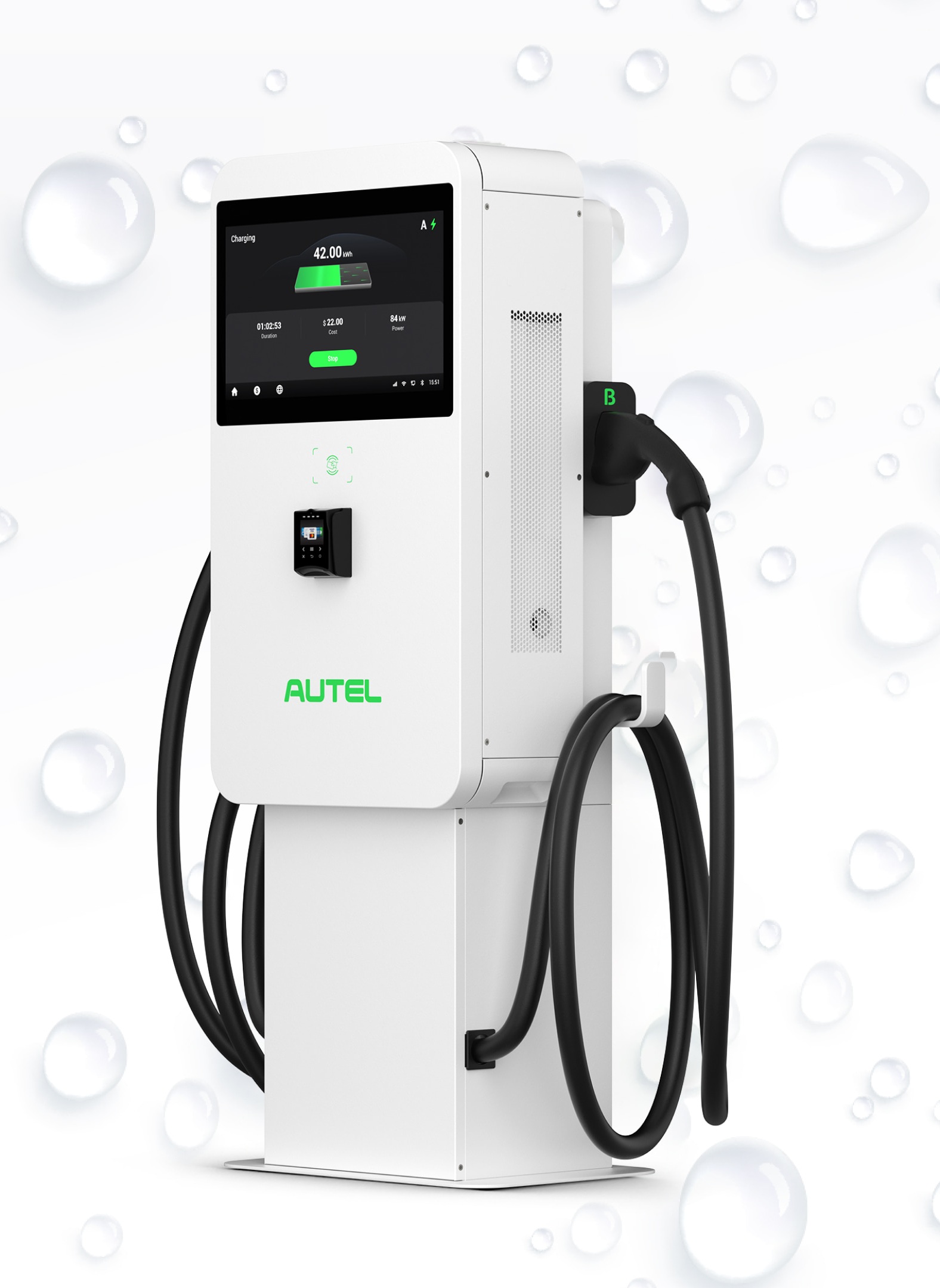

Engineered for Exterior Environments
With its NEMA 3S protection rating, the MaxiCharger DC Compact is built for outdoor installation and performs reliably in rain, snow, extreme cold, and intense heat. Robust in-house testing guarantees operation in temperatures ranging from -22°F up to 131°F, ensuring dependable performance in virtually any weather.
Power Up Smart. Power Up Safe
Equipped with a credit card reader, RFID reader, and app-based payment options, the MaxiCharger DC Compact enables fast and secure transactions. It’s also Plug-and-Charge ready, giving drivers an even easier and safer way to power up.
Credit card reader
RFID card reader
App-based payment

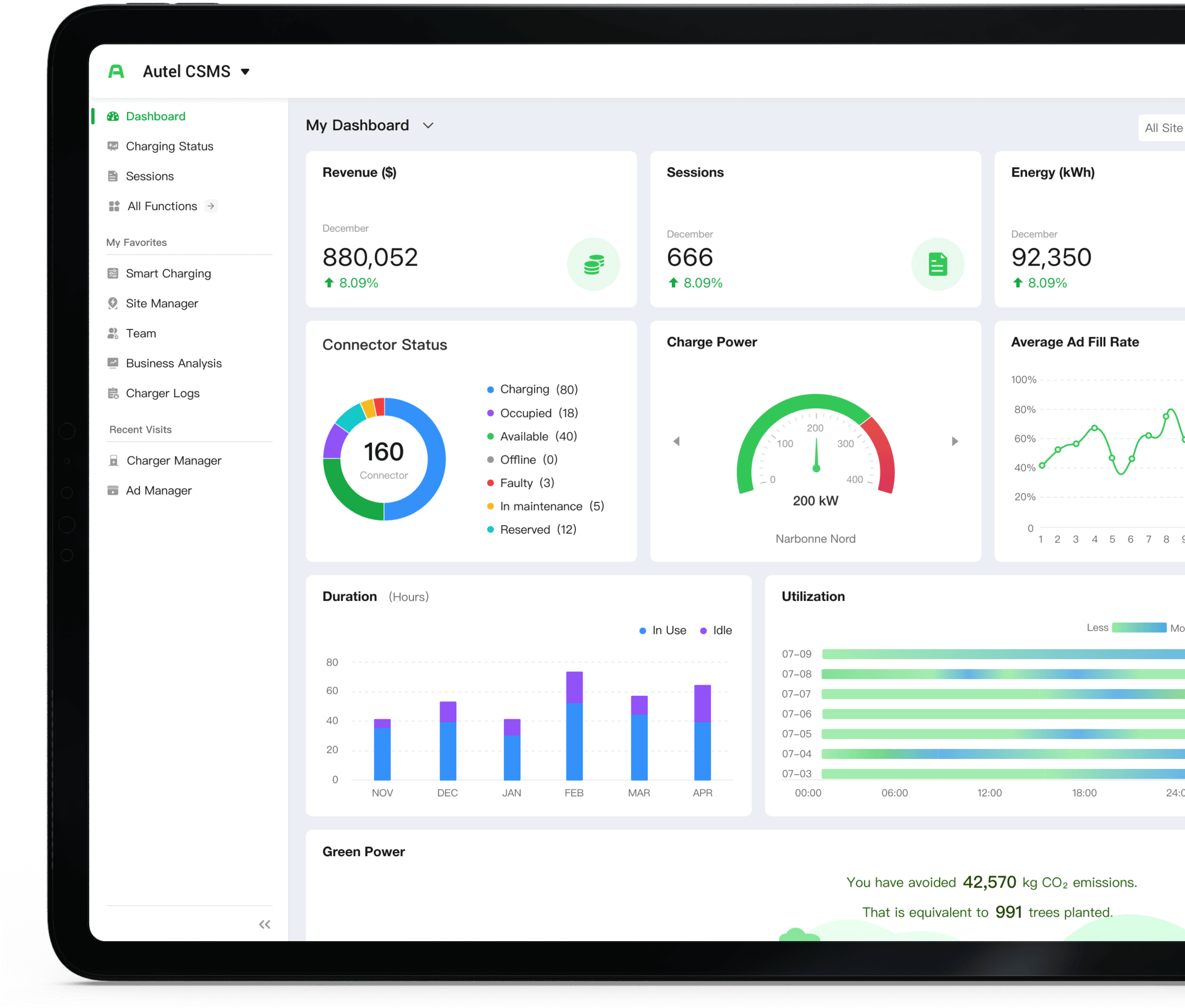

OCPP Compliant.
The MaxiCharger DC Compact supports OCPP for smooth integration with charging station management systems. Easily oversee your chargers through our cloud platform or connect them to your own.
Cost-Effective Setup
Thanks to its compact design, operators can reduce installation expenses. Autel’s clear, step-by-step guidelines ensure the setup process is fast, straightforward, and hassle-free.
Maximum Efficiency
With 96% efficiency at full power, the MaxiCharger DC Compact offers exceptional energy performance, ensuring drivers make the most of every charging session.
Keep Connected
Bluetooth, WiFi, 4G, and Ethernet connectivity offer operators maximum flexibility for seamless OTA updates, app access, and charger-to-charger communication for power sharing. In multi-charger installations, WiFi can be used as a hotspot to lower setup costs and maintain a clutter-free, wireless environment.
